Magsafe 2 Pinout

MagSafe 2 can be found on the MacBook Pro 20122015 and MacBook Air 20122017 notebook computers. Even stranger for an 85 watt charger the wattage field in the ID contains 60 3C hex not 85 even though 85 watts shows up on the info screen.

Magsafe 2 Pinout - If you're searching for video and picture information related to the keyword you have come to visit the right blog. Our website provides you with suggestions for viewing the highest quality video and image content, search and locate more enlightening video articles and images that fit your interests. comprises one of thousands of movie collections from several sources, particularly Youtube, so we recommend this movie for you to view. It is also possible to contribute to supporting this website by sharing videos and graphics that you like on this blog on your social networking accounts like Facebook and Instagram or educate your closest friends share your experiences about the simplicity of access to downloads and the information that you get on this site. This site is for them to visit this site.

How To Fix Apple Magsafe Magnatic Connector L Style With Pin Stucked Not Charging Youtube

Jim those pins are called spring loaded pins often colloquially referred to as pogo pins for which there are a.

Magsafe 2 pinout. Have a great day. For Magsafe 2 chargers the customer ID is 7A1 for a 45 watt charger 921 for a 60 watt charger and AA1 for an 85 watt charger. 30 -0 According to 31 reports in our database 30 positive and 0 negative the Apple MacBook power connector MagSafe pinout should be correct.

The resulting shape is incompatible with the older MagSafe connector. My the wiring was it bit loosely and the connection was broken again. 3 LED connects to a 1-wire chip inside.

And dave will hack his car by adding a car alarm. Max 2 items per transaction. Apple released a MagSafe to MagSafe 2 adapter that was also bundled with the Thunderbolt Display which used the original MagSafe connector.

How to repair apple magsafe if the connectors pin are stuck in magnet connector. The MacBook Pro MagSafe is 165 to 185 volts at 46 amps. The MacBook Air is the only model with Magsafe 2 currently on sale.

V 1686 VDC. May 30 Pin Pin Name Description. My magsafe connector developed a fault.

Hi recently I repaired my magsafe adapter because the wire to the end of the power adapter got broken. The MacBook Air MagSafe 2 AC adapter is 1485 volts at 305 amps. Wow this place is turning into Make for newbies.

Not compatible with previous generation systems. 686 VDC idle 14. 2 In step 15 isnt it Araldite the product you use instead of Areldite.

Select power accessories only. By Admin December 3 2017. I just want the highest of qualities for your guide so that no one gets confused when using it.

One is round the other is square. Its strange to use separate customer IDs for the different models. Pinout of MacBook power connector MagSafe Pin.

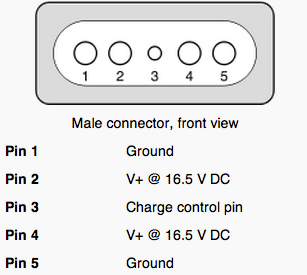

I was hoping to keep the MacBook Pro AC adapter charger use it as a backup for my MacBook air but the pins are incompatible. Apple MagSafe 2 Charger. A pinout diagram of an Apple MagSafe connector.

2nd-generation magnetic AC power adapter for MacBook products first released in 2012. 1 In step 14 shouldnt it be that pins 1 and 5 do not short with 2 and 4 instead of 2 and 3. Get 50 off Verizon chargers.

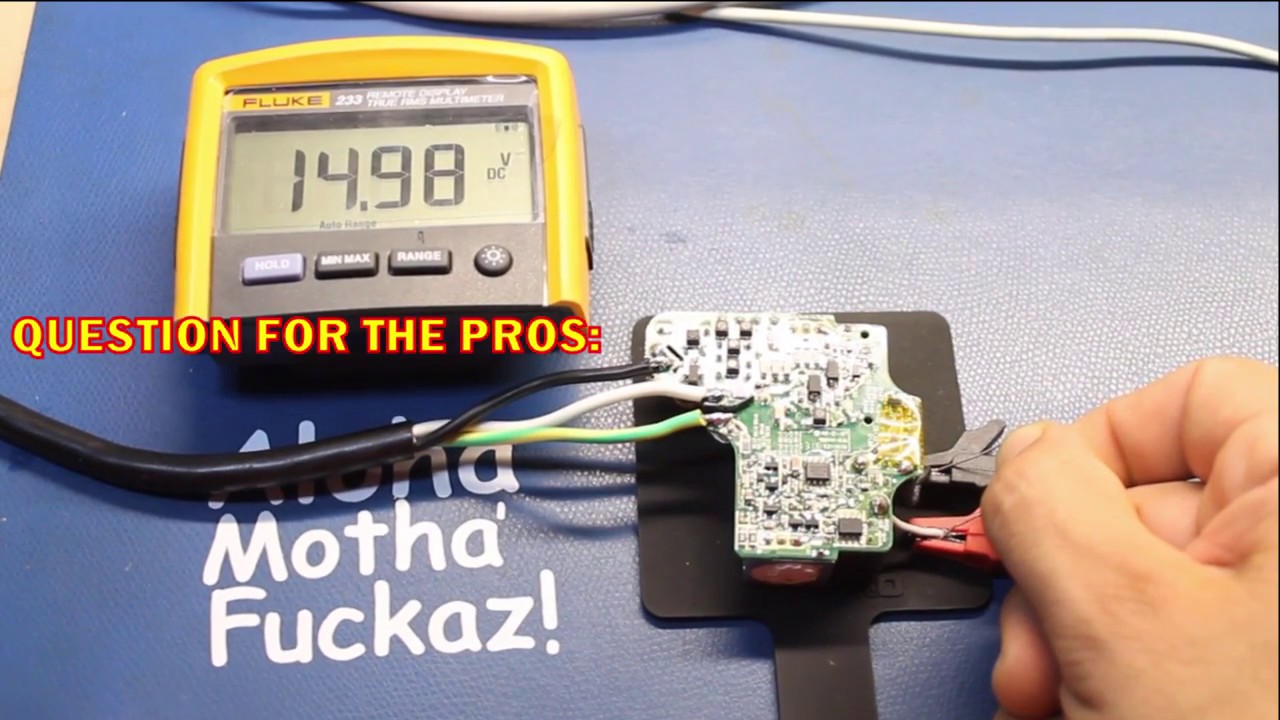

686 VDC idle 145 165 or 185 VDC depending on load. Correct wiring of MagSafe power adapter. This is a partial video where I look at a Magsafe2 with a short on the cable In the end I decided to replace the entire cable since I had an original one to.

Connects to a 1-wire chip inside the connector which controls the charging voltage and the LED status. Teardown and exploration of apple s magsafe connector schematic parts 85 watt 2 p community time on twitter cross section an there a 6 layer board some leds inside macbook power pinout diagram pinoutguide com how to repair charger magnetic end ifixit guide pro 15 logic input. 686 VDC idle 145 165 or 185 VDC depending on load.

It was getting very warm and the led. I can see how the 45 watt 85 watt adapters get their power. Both have 5 pins.

The MagSafe connector pins allow for the adapter to be inserted in either of two orientations. Thanks in advance for checking that. Spend more time celebrating and less time charging when you save on Verizon chargers 2.

Apple macbook power connector magsafe pinout diagram pinoutguide com teardown and exploration of s charger the surprising complexity inside adapter pro 15 logic board input circuit repai ifixit repair guide post mortem 60w a1344 gough tech zone reduce cable strain on your support schematic parts 85 watt 2 p community 85w for with retina display 1 a1343 inch Read More. Boomer hacks his house by replacing the 2 prong outlets with 3 prong outlets. Magsafe 2 Wiring Diagram.

Legend 1 5. Magsafe 2 Wiring Diagram. 185 volts times 46 amps equals 85 watts 1485 volts times 305 amps equals 45 watts.

The MagSafe connectors are different shapes. I repaired it by opening the case and rewired it. 2 V VDC idle or VDC depending on load.

Both the voltage current are lower on the newer MagSafe 2.
